- On this page various design demonstrations are shown of analysis & design methods as well as 2D & 3D CAD and database modeling.
- With an exception, code demonstrations are not shown, but implementations are possible using C, C++, Python, Perl and more.
- For reasons of NDA, previous work for customers is not shown. If you have any questions about possiblities, please send us an email.
Example of a controller schematics using Archimate Application view. © by Huub van Niekerk.
![](https://vniekerk.nl/wp-content/uploads/2024/07/Software-application-demo-reel-c.jpg)
Example of a controller schematics using Archimate Technology & Physical view. © by Huub van Niekerk and realized with fischertechnik®
![](https://vniekerk.nl/wp-content/uploads/2024/07/Controller-USB-RF-Archimate-T-P-view-demo-reel-c.jpg)
Example 2 of a controller schematics using Archimate Technology & Physical view. © by Huub van Niekerk and realized with fischertechnik®
![](https://vniekerk.nl/wp-content/uploads/2024/07/Controller-Archimate-T-P-view-demo-reel-c.jpg)
Example 3 of a controller schematics using Archimate Technology & Physical view. © by Huub van Niekerk and realized with fischertechnik®.
![](https://vniekerk.nl/wp-content/uploads/2024/07/Controller-Archimate-T-P-view-demo-reel-v2-c.jpg)
Sample of Enterprise Architecture using Archimate
![](https://vniekerk.nl/wp-content/uploads/2021/11/Generated-View-for-Communication-Network.png)
Sample of a Data Flow Diagram using the symbols by Yourdon & Coad, extended with Ward & Mellor.
![](https://vniekerk.nl/wp-content/uploads/2020/10/Demo-reel-Yourdon-Ward-Mellor-1.png)
Sample of a Data Flow Diagram using the symbols by Gane & Sarson
![](https://vniekerk.nl/wp-content/uploads/2022/11/demo-Gane-Sarson-1.png)
Sample design using flowchart:
![](https://vniekerk.nl/wp-content/uploads/2020/10/Demo-reel-flowchart.png)
Sample design of an ERD (Entity Relationship Diagram)
![](https://vniekerk.nl/wp-content/uploads/2024/06/Demo-reel-ERD.png)
Sample of database design, using BNCF data normalisation
![](https://vniekerk.nl/wp-content/uploads/2020/10/Demo-reel-databse-cardinality.png)
Sample of IDEF0 modeling
![](https://vniekerk.nl/wp-content/uploads/2023/08/Demo-reel-IDEF0-model.png)
Sample of a process diagram using BPMN (Business Process Modelling Notation):
![](https://vniekerk.nl/wp-content/uploads/2021/04/BPMN-1024x535.png)
Sample BPMN with swimlanes:
![](http://vniekerk.nl/wp-content/uploads/2023/08/Demo-reel-swimlane-1024x897.png)
2D design made with LibreCAD of a model which moves in a circle. Shown is the righthand-side. The working model does exist, © by Huub van Niekerk (me) and is made with fischertechnik®.
![](https://vniekerk.nl/wp-content/uploads/2024/05/Move-in-circle.png)

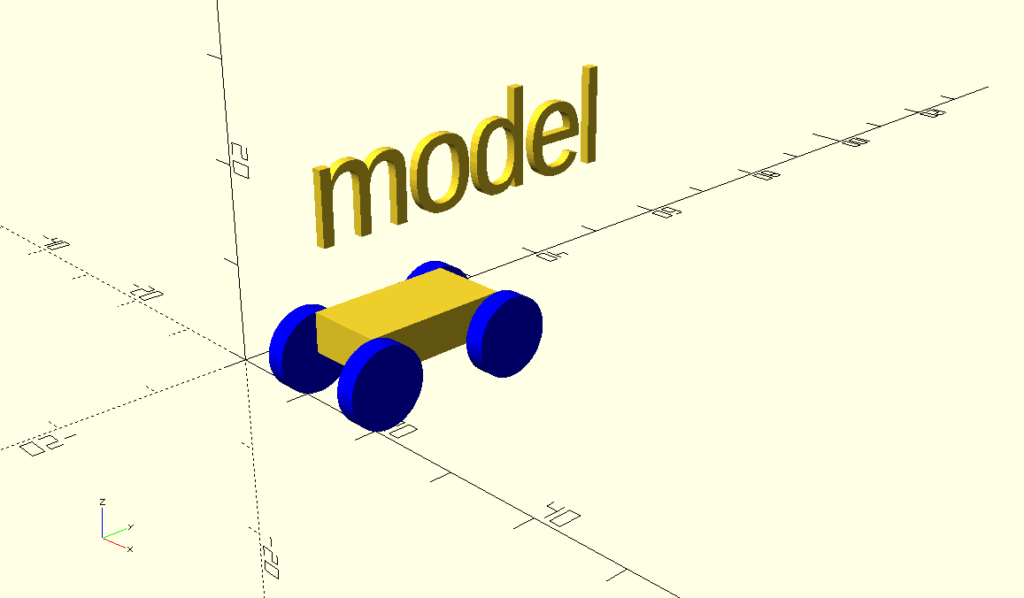

Sample of a simple vehicle made with OpenSCAD
![](https://vniekerk.nl/wp-content/uploads/2020/12/Demo-screenshot-OpenSCAD-vehicle-2020-12-07_09-16-20-1024x562.png)
STL-mesh of previous sample imported into MeshLab
![](https://vniekerk.nl/wp-content/uploads/2020/12/Demo-screenshot-OpenSCAD-vehicle-STL-with-MeshLab-2020-12-07_09-19-49-1024x562.png)
The earlier shown OpenSCAD vehicle, exported via MeshLab to a COLLADA .dae-file, in GazeboSim
![](https://vniekerk.nl/wp-content/uploads/2020/12/demo-screenshot-Gazebo-vehicle2020-12-08_10-17-53-1024x562.png)
3D design made with FreeCAD of a model which moves in a circle. Left-front and right-rear sides. The working model does exist, © by Huub van Niekerk and is made with fischertechnik®.
![](https://vniekerk.nl/wp-content/uploads/2024/05/Move-in-circle-1024x482.jpeg)
![](https://vniekerk.nl/wp-content/uploads/2024/05/Move-in-circle-rr-1024x482.jpeg)
Sample of a simple electronics simulation using Scilab Xcos
![](https://vniekerk.nl/wp-content/uploads/2020/11/Screenshot-Scilab-electronics-simul-2020-11-02_13-25-51-1024x562.png)
Sample of a control blockschema using control algebra
![](https://vniekerk.nl/wp-content/uploads/2020/11/demo-controlschema-gle.png)
3 samples of the use of GNU Octave (comparable with Matlab) (editor, command window and result graphs)
![](https://vniekerk.nl/wp-content/uploads/2020/10/Screenshot-Octave-ArduinYunGraph-2020-10-30-15-08-59-1024x562.png)
![](https://vniekerk.nl/wp-content/uploads/2020/10/Screenshot-Octave-ArduinoYunGraph-Command-2020-10-30-15-09-48-1024x561.png)
![](https://vniekerk.nl/wp-content/uploads/2020/10/Screenshot-ArduinoYunGraph-datafigures-2020-10-30-15-11-18-1024x557.png)
Sample of using R via RStudio
![](https://vniekerk.nl/wp-content/uploads/2022/07/Screenshot_RStudio_2022-07-01_09-37-31-1024x560.png)
Sample UML class diagram
![](https://vniekerk.nl/wp-content/uploads/2022/10/demo-reel-uml-Class-diagram.png)
Sample UML sequence diagram
![](https://vniekerk.nl/wp-content/uploads/2022/10/demo-reel-uml-Sequence-diagram-2.png)
Sample UML use-case diagram
![](https://vniekerk.nl/wp-content/uploads/2022/10/demo-reel-uml-Use-Case-diagram.png)
Sample MBSE OEBD diagram
![](https://vniekerk.nl/wp-content/uploads/2023/08/OEBD-Operational-Entities-1024x636.png)
Sample MBSE OCB diagram
![](https://vniekerk.nl/wp-content/uploads/2023/08/OCB-Operational-Capabilities-1024x458.png)
